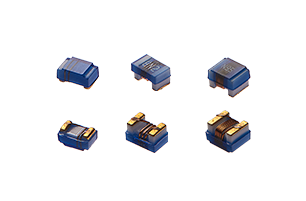

线绕陶瓷电感
WWCI(一般用)
FEATURES
?Wire wounded with high Q and high SRF
?More stable due to ceramic design
?Small size and small tolerance available
?Operating temperature:-40°C to +125°C
APPLICATION
?HF application
FEATURES
?Wire wounded with high Q and high SRF
?More stable due to ceramic design
?Small size and small tolerance available
?Operating temperature:-40°C to +125°C
APPLICATION
?HF application
| 产品图 | 系列号 | 尺寸(mm) | 电感值(nH) | 温升电流(mA) | 直流电阻(Ω) | 自谐振频率(MHz) | 文件下载 |
 | WWCI0402 | 1.0*0.55*0.5 | 1.0~120 | 110~200 | 0.104~2.66 | 1100~4160 |  |
 | WWCI0603 | 1.6*1.05*1.05 | 1.8~390 | 170~700 | 0.045~2.0 | 350~12500 | |
 | WWCI0805 | 2.28*1.70*1.28 | 2.7~1500 | 130~800 | 0.08~5.3 | 200~6000 | |
 | WWCI1008 | 2.6*2.1*1.7 | 3.3~1000 | 120~1000 | 0.06~3.3 | 310~6000 | |
